Make music with this Stereo flyback ZVS driver

Posted on February 20, 2022 by Mark Donners

Make music with this Stereo flyback ZVS driver. You can drive 2 flyback transformers to create a 2 channel sound ( Stereo ). You can use square wave music as the sound course.
It’s a fun little project that you can use to create awesome videos. Also, you will learn how to drive Flyback transformers; a technique that was used in old TV sets but if becoming less and less every day.
You can use any flyback transformer that you would like. Play around with old transformers that you harvest from old tv’s or just buy them at Aliexpress or elsewhere.

This video is sponsored by @PCBWay They make great PCB board and offer good assembly service. Check out the website at https://www.pcbway.com/

๐Ÿ•ฎ Manual:
https://content.instructables.com/ORIG/FIJ/XN8Q/KZVA6S3D/FIJXN8QKZVA6S3D.pdf

๐Ÿ‘จโ€๐Ÿ’ป Building instructions:
Instructables: https://www.instructables.com/PCB-STEREO-FLYBACK-DRIVER/

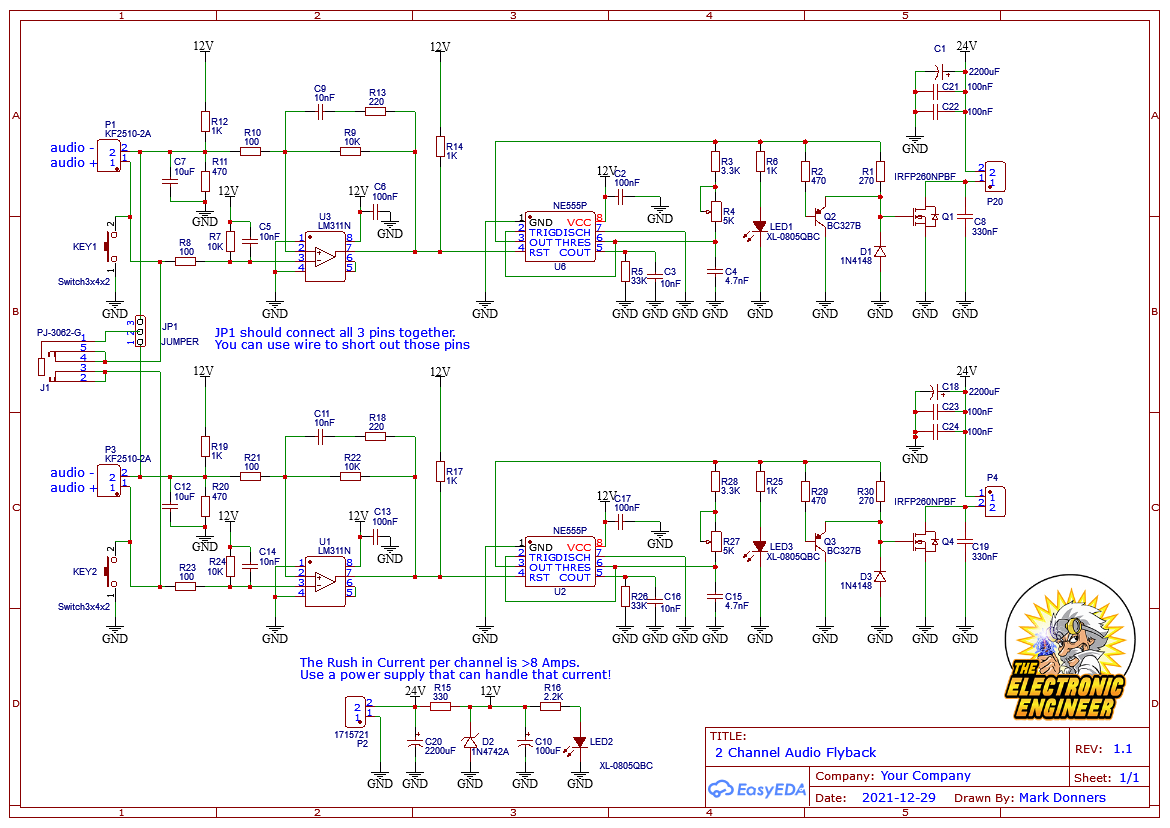

Schematic: https://content.instructables.com/ORIG/F2R/S80X/KZVA6UB2/F2RS80XKZVA6UB2.png?auto=webp&frame=1&width=989&fit=bounds&md=0c1cdf31e8d9307afc74d5d2e6cc2690
